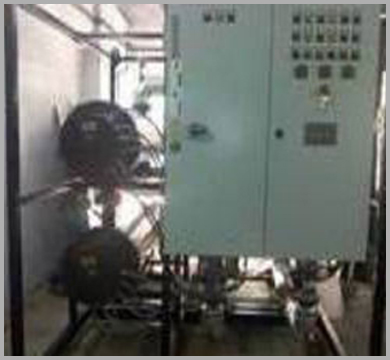

Hot Air Generator

Hot Air Generator

kerone offers a range of Hot Water Generator for various applications and usages. We are manufacture of goods on vast scale by machinery Hot Water Generators for a variety of fuels including solid fuels. Heat exchangers are available in Several ranges such as Condensers, Vent Condensers, Re-boilers and Sub-coolers depending upon process demand. It also can be customized according to the customers specification and can be used in vast number of applications.

A fully automatic multi pass counter current Hot Air Generator consist of stainless steel shell type integral combustion chamber accommodated in multi M.S. shell. The cold air is inserted by a suitable capacity blower fan in first pass, absorbs heat from flue gas passage and accordingly both hot flue gas and cold air travel in opposite direction in the passage which ultimately transfers 90% heat to cold air and delivers hot air from hot air outlet hole. The system functions fully automatic on temperature sensing device installed at hot air outlet which ON-OFF the burner at pre-set temperature. the system is a package type unit, fixed on common base frame.

This equipment is suitable for supplying dry air which keeps the power equipment's inner parts from moisture in the maintenance of transformer, reactor and other big power facilities. Maintenance staff will not be short of oxygen working inside the equipment. It is more reliable, economic, convenient and safer than nitrogen.

Therefore, it can cut down maintenance period and increase the efficiency of maintenance quality!

Item Parameter Model Unit
Technical Parameter Flow M3/h 50 100 150 200
Working Pressure Mpa 0.6~0.8
Pressure Drop Mpa 0.05
Noise dB(A) 70
Working Power KW 380V-50Hz 3 Phase 4 Wire
Total Power KW 12 19 22 26
Size Length cm 215 215 230 230
Width cm 155 155 165 165
Height cm 230 230 230 230
Diameter DN 32 40 50 50
Weight Kg 900 980 1030 1050
After Treatment Index Discharge Pressure Mpa 0.02~0.03
Dew Point °C -50°C ~ -70°C
Particle um 0.01
Oil content in air outlet ppm 0.01
